Nimonic
Nimonic 75 Plate is a Nickel-Chromium alloy with good corrosion and heat resistance. Nimonic 75 is an 80/20 nickel-chromium alloy containing titanium and carbon as additives. Nimonic 75 Sheet are primarily composed of nickel and chromium. These Nimonic 75 Coil are mainly known for their high performance and high-temperature low-creep. All Nimonic 75 Rolling Sheets has high creep-rupture properties at temperatures to about 1740°F (950°C).
| Grade | UNS Number | Composition (%) | Density (g/cm³) | Melting Point (°C) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Applications |
|---|---|---|---|---|---|---|---|---|
| Nimonic 75 | N06075 | Ni 70-80, Cr 18-21, Ti 0.2-0.6, C 0.08-0.15, Fe 5.0 max, Mn 1.0 max, Si 1.0 max | 8.37 | 1330-1380 | 685-930 | 275-585 | 20-35 | Gas turbine components, industrial furnace parts, nuclear engineering |
| Nimonic 80A | N07080 | Ni 65-75, Cr 18-21, Ti 1.8-2.7, Al 1.0-1.8, Fe 3.0 max, Mn 1.0 max, Si 1.0 max, C 0.06-0.2, Cu 0.2 max, Co 2.0 max | 8.18 | 1330-1380 | 950-1230 | 700-1030 | 15-25 | Gas turbine blades, bolts, high-temperature springs, nuclear reactor components |
| Nimonic 90 | N07090 | Ni 53-57, Cr 18-21, Co 15-21, Ti 2.0-3.0, Al 1.0-1.8, Fe 1.5 max, Mn 1.0 max, Si 1.0 max, C 0.09-0.13, Cu 0.2 max | 8.19 | 1310-1360 | 1070-1310 | 780-1070 | 10-20 | Gas turbine blades, hot-working tools, high-stress bolts, automotive valves |
| Nimonic 105 | N13106 | Ni 60-70, Cr 14-16, Co 18-22, Ti 4.2-5.2, Al 4.5-5.5, Fe 1.0 max, Mn 0.5 max, Si 0.5 max, C 0.12-0.2, Cu 0.1 max | 7.92 | 1285-1330 | 1000-1300 | 600-1000 | 10-20 | High-temperature engine components, gas turbines, industrial heating elements |
| Nimonic 115 | N070115 | Ni 60-75, Cr 14-16, Co 14-15, Ti 3.5-5.0, Al 4.5-5.5, Fe 1.0 max, Mn 0.5 max, Si 0.5 max, C 0.12-0.2 | 8.15 | 1310-1360 | 1100-1350 | 800-1150 | 10-20 | Gas turbines, aerospace components, industrial gas turbines |
| Nimonic 263 | N07263 | Ni 49-55, Cr 19-21, Co 19-21, Mo 5.6-6.1, Ti 1.9-2.4, Al 0.4-0.8, Fe 0.7 max, Mn 0.6 max, Si 0.4 max, C 0.04-0.08, B 0.005 max | 8.36 | 1340-1370 | 900-1150 | 620-970 | 25-35 | Aerospace gas turbines, high-temperature containment, cryogenic equipment |
| Nimonic 80A | N07080 | Ni 65-75, Cr 18-21, Ti 1.8-2.7, Al 1.0-1.8, Fe 3.0 max, Mn 1.0 max, Si 1.0 max, C 0.06-0.2, Cu 0.2 max, Co 2.0 max | 8.18 | 1330-1380 | 950-1230 | 700-1030 | 15-25 | Gas turbine blades, bolts, high-temperature springs, nuclear reactor components |
| Nimonic 90 | N07090 | Ni 53-57, Cr 18-21, Co 15-21, Ti 2.0-3.0, Al 1.0-1.8, Fe 1.5 max, Mn 1.0 max, Si 1.0 max, C 0.09-0.13, Cu 0.2 max | 8.19 | 1310-1360 | 1070-1310 | 780-1070 | 10-20 | Gas turbine blades, hot-working tools, high-stress bolts, automotive valves |
| Nimonic 105 | N13106 | Ni 60-70, Cr 14-16, Co 18-22, Ti 4.2-5.2, Al 4.5-5.5, Fe 1.0 max, Mn 0.5 max, Si 0.5 max, C 0.12-0.2, Cu 0.1 max | 7.92 | 1285-1330 | 1000-1300 | 600-1000 | 10-20 | High-temperature engine components, gas turbines, industrial heating elements |
| Nimonic 115 | N070115 | Ni 60-75, Cr 14-16, Co 14-15, Ti 3.5-5.0, Al 4.5-5.5, Fe 1.0 max, Mn 0.5 max, Si 0.5 max, C 0.12-0.2 | 8.15 | 1310-1360 | 1100-1350 | 800-1150 | 10-20 | Gas turbines, aerospace components, industrial gas turbines |
| Nimonic 263 | N07263 | Ni 49-55, Cr 19-21, Co 19-21, Mo 5.6-6.1, Ti 1.9-2.4, Al 0.4-0.8, Fe 0.7 max, Mn 0.6 max, Si 0.4 max, C 0.04-0.08, B 0.005 max | 8.36 | 1340-1370 | 900-1150 | 620-970 | 25-35 | Aerospace gas turbines, high-temperature containment, cryogenic equipment |

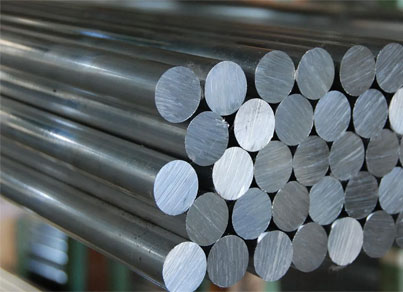

Nimonic Round Bar
NIMONIC 263 Round Bars is a precipitation-hardenable nickel-chromium-cobalt alloy by means of having an addition of molybdenum for solid-solution strengthening. These NIMONIC 263 Rods has high strength and corrosion resistance along in the company of good formability and high-temperature ductility in welded structures.
| EN Number | Alloy Designation | Composition (%) | Density (g/cm³) | Melting Point (°C) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Applications |
|---|---|---|---|---|---|---|---|---|
| EN 2.4951 | Nimonic 75 | Ni 70, Cr 18-21, Ti 0.2-0.6, C 0.08-0.15 | 8.37 | 1340-1370 | 650-800 | 275-450 | 35-50 | Sheet metal for gas turbine engines, industrial heating furnaces, nuclear engineering |
| EN 2.4632 | Nimonic 80A | Ni 69, Cr 18-21, Co 1-2, Ti 1.8-2.7, Al 1.0-1.8, Fe ≤ 3, Mn ≤ 1, Si ≤ 1, C ≤ 0.1 | 8.19 | 1345-1370 | 800-900 | 600-700 | 15-25 | Turbine blades, discs, forgings, ring sections |
| EN 2.4969 | Nimonic 90 | Ni 53, Cr 18-21, Co 15-21, Ti 2-3, Al 1-2, Fe ≤ 1.5, Mn ≤ 1, Si ≤ 1, C ≤ 0.16 | 8.18 | 1345-1370 | 1000-1200 | 700-850 | 10-20 | High temperature engine components, turbine blades, discs, rings |
| EN 2.4633 | Nimonic 105 | Ni 60, Cr 14.5-15.5, Co 18-21, Mo 4.5-6, Al 4.2-5.2, Ti 0.5-1.5, Fe ≤ 1, Mn ≤ 1, Si ≤ 1, C ≤ 0.15 | 8.19 | 1345-1370 | 800-1000 | 600-800 | 15-25 | High temperature turbine blades, discs, rings |
| EN 2.4650 | Nimonic 263 | Ni 50-55, Cr 19-21, Co 19-21, Mo 5.6-6.1, Al 0.3-0.6, Ti 1.9-2.4, Fe ≤ 0.7, Mn ≤ 0.6, Si ≤ 0.4, C ≤ 0.04 | 8.36 | 1350-1370 | 900-1100 | 700-800 | 20-30 | Combustion chambers, exhaust systems, afterburners |
Nimonic Rod
With a vast knowledge of this field, we are offering an excellent collection of Nimonic 75 Rod to our respected clients. Available in various sizes as per the requirements of our clients, these rods are offered at discounted prices. Moreover, the offered rods are admired for their sturdy construction and maximum lifespan.
