Titanium

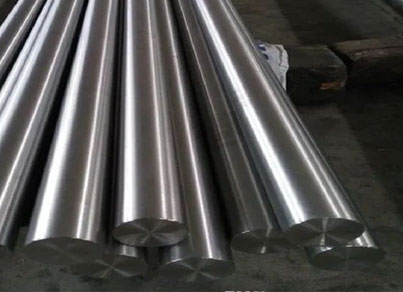

We supply a wide range of Titanium products that are used in different applications and are known to impart high performance in them. The titanium array includes rod, sheet, pipe wires strips, plates, fittings, and others in various shapes, sizes and in different grades, as well. The different grades of the products include Grade-I,Grade- II,Grade- III & Grade V. Titanium Wire We are having a large stock of Titanium wires and rods in special grades such as Titanium grade 5 which are generally used for Mfg. Surgical Items. This is also known as Titanium surgical grade. Also offer grades are available such as Grade 1, Grade 2 etc in various sizes.
| Grade | UNS Number | Composition (%) | Density (g/cm³) | Melting Point (°C) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Applications |
|---|---|---|---|---|---|---|---|---|
| Grade 1 | R50250 | Ti 99.5 min, Fe 0.20 max, O 0.18 max, C 0.08 max, N 0.03 max, H 0.015 max | 4.51 | 1660-1670 | 240-410 | 170-275 | 20-40 | Chemical processing, marine environments, medical applications |
| Grade 2 | R50400 | Ti 99.2 min, Fe 0.30 max, O 0.25 max, C 0.08 max, N 0.03 max, H 0.015 max | 4.51 | 1660-1670 | 345-450 | 275-380 | 20-30 | Chemical processing, aerospace, marine environments |
| Grade 3 | R50550 | Ti 99.1 min, Fe 0.30 max, O 0.35 max, C 0.08 max, N 0.05 max, H 0.015 max | 4.51 | 1660-1670 | 450-620 | 380-515 | 18-30 | Aerospace, chemical processing, marine environments |
| Grade 4 | R50700 | Ti 99.0 min, Fe 0.50 max, O 0.40 max, C 0.08 max, N 0.05 max, H 0.015 max | 4.51 | 1660-1670 | 550-760 | 485-620 | 15-25 | Aerospace, chemical processing, medical implants |
| Grade 5 | R56400 | Ti 90, Al 6, V 4, Fe 0.25 max, O 0.20 max, C 0.08 max, N 0.05 max, H 0.015 max | 4.43 | 1604-1660 | 895-960 | 825-880 | 10-14 | Aerospace, marine applications, chemical processing, medical implants |
| Grade 7 | R52400 | Ti 99.2 min, Pd 0.12-0.25, Fe 0.30 max, O 0.25 max, C 0.08 max, N 0.03 max, H 0.015 max | 4.51 | 1660-1670 | 345-510 | 275-410 | 20-30 | Chemical processing, marine environments |
| Grade 9 | R56320 | Ti 90, Al 3, V 2.5, Fe 0.25 max, O 0.15 max, C 0.05 max, N 0.03 max, H 0.015 max | 4.48 | 1649-1660 | 620-720 | 530-620 | 10-15 | Aerospace, sporting goods, marine applications |
| Grade 12 | R53400 | Ti 98.7 min, Mo 0.2-0.4, Ni 0.6-0.9, Fe 0.30 max, O 0.25 max, C 0.08 max, N 0.03 max, H 0.015 max | 4.50 | 1660-1670 | 438-620 | 345-510 | 18-25 | Chemical processing, marine environments |
| Grade 23 | R56401 | Ti 90, Al 6, V 4, Fe 0.25 max, O 0.13 max, C 0.08 max, N 0.03 max, H 0.012 max | 4.43 | 1604-1660 | 895-960 | 825-880 | 10-15 | Medical implants, aerospace, high-performance applications |

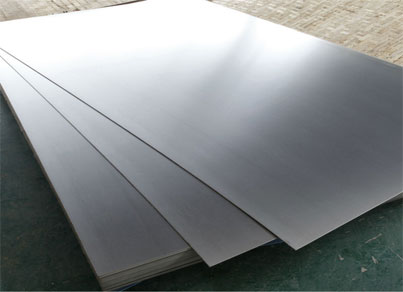

We offer an exclusive range of titanium sheet plates that are made
supreme quality titanium sheets.
We make sure that our trusted manufacturers undergo stringent quality
tests during the manufacturing
process so that when we procure and trade those products our clients’ do
not face any inconvenience.
Our entire assortment caters to the requirements of diverse industries.
020" to under .187" x up to 48" Wide x Length
Standard sizes: 48" Wide X 120" Long [Sheet can be sheared to any Custom
size.]
[By ASTM definition, Sheet is product .187" (4.75 mm) and under in
thickness and 24" (610 mm) or more
in width.]
| EN Number | Alloy Designation | Composition (%) | Density (g/cm³) | Melting Point (°C) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Applications |
|---|---|---|---|---|---|---|---|---|
| EN 3.7035 | Ti Grade 1 | Ti ≥ 99.5 | 4.51 | 1660-1670 | 240-410 | 170-240 | 24-30 | Chemical processing, marine, medical |
| EN 3.7034 | Ti Grade 2 | Ti ≥ 99.2 | 4.51 | 1660-1670 | 340-510 | 275-410 | 20-30 | Chemical processing, aerospace, marine |
| EN 3.7164 | Ti Grade 5 | Ti 90, Al 6, V 4 | 4.43 | 1604-1660 | 895-965 | 825-895 | 10-15 | Aerospace, marine, biomedical implants |
| EN 3.7165 | Ti Grade 23 | Ti 90, Al 6, V 4, O ≤ 0.13, C ≤ 0.08 | 4.43 | 1604-1660 | 860-930 | 795-860 | 10-15 | Biomedical implants, aerospace |
| EN 3.7036 | Ti Grade 3 | Ti ≥ 99.5 | 4.51 | 1660-1670 | 450-620 | 380-540 | 18-25 | Aerospace, chemical processing, medical |
| EN 3.7065 | Ti Grade 7 | Ti 99.2, Pd 0.12-0.25 | 4.51 | 1660-1670 | 345-550 | 275-410 | 20-30 | Chemical processing, marine |
With innovative and customer focused approach, we offer a wide range of Titanium Plate. We manufacture these sheets using superior quality steels that are in the compliance with global standards. This plate/sheet aids the fitting assembly to provide enormous strength and prevent leakage. These are easy to install and capable to with stand even in a tough whether conditions. It is popular for its dimensional accuracy and hardness.
